YUELONG ELECTRONIC
M20 CONNECTOR : 2 way (2-pole) M20 plug connector, with two sizes of rubber ring, Cable Range : Ø4-10mm, the connectors include "live wire"&"earth wire".
EXCELLENT MATERIAL : The connector made of PA66 material, Resistance to high temperature and low temperature, V-0 flame ant, working temperature: -40°C~85°C.
AMAZING WATERPROOF EFFECT : Built-in Rubber ring and clamping nut, IP68 Waterproof / Moisture-proof / Dust-proof/Anti-UV, Can be used in water but not more than 3.5m.
EASY TO INSTALL : Small size, light in weight, reasonably designed, just a screwdriver, so that the cable connector installed in any place where it needs. Note:When finished, check that all nuts are tight.
Model No. | YPM20-2T2C-A | |
| Material | Connector Body | Nylon (PA66) |
| Contact | Copper | |
| Sealing | Silica gel | |
| Current Rating | 32A | |
| Voltage Rating | 85-260V | |
| Contact Resistance | <10mΩ | |
| Insulation Resistance | 1000mΩ DV 500V | |
| Breakdown Voltage | 1.5KV/1min | |
| Temperature Rating | -40℃~+85℃ | |
| Durability (Plug/Unplug) | 500 times | |
| Waterproof Level | IP68 | |
| Cable Diameter Range | 4-10mm | |
| Pins Range | 2/3/4/5 Pin | |
| Certificates | CE, RoHS, ISO9001,IP68,Patent certificates | |
| Warranty | 3 Years | |
Features:
1. Convenient connection style, screw fixing
2. Accepted Cable diameter: 10 mm
3. The material of products in Nylon and Copper greatly improves product durability and safety.

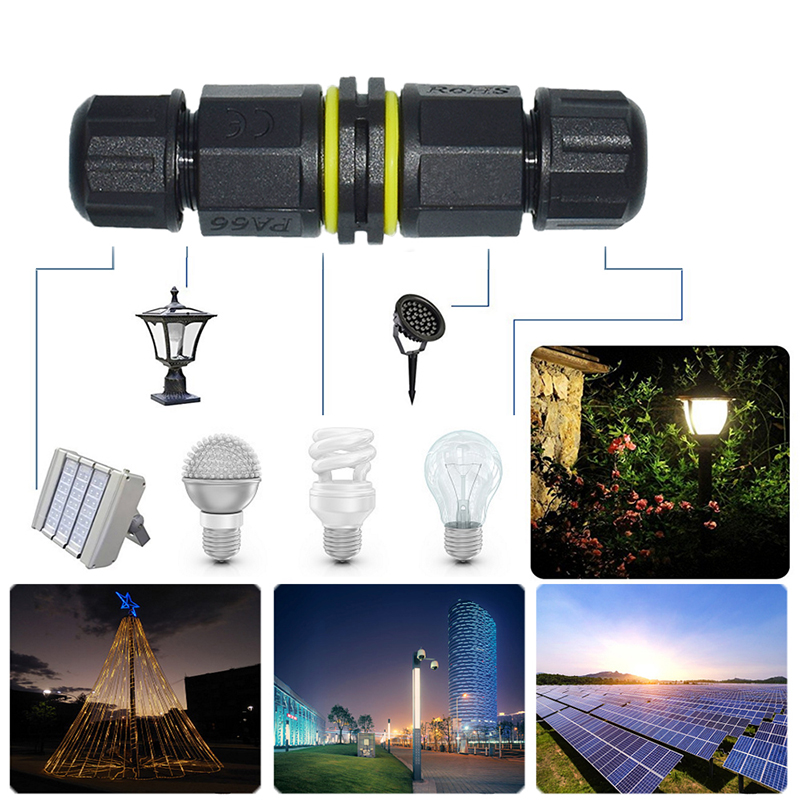

4. Mainly used for LED lighting, outdoor display, electrical equipments, automation machines and electrical vehicle etc.

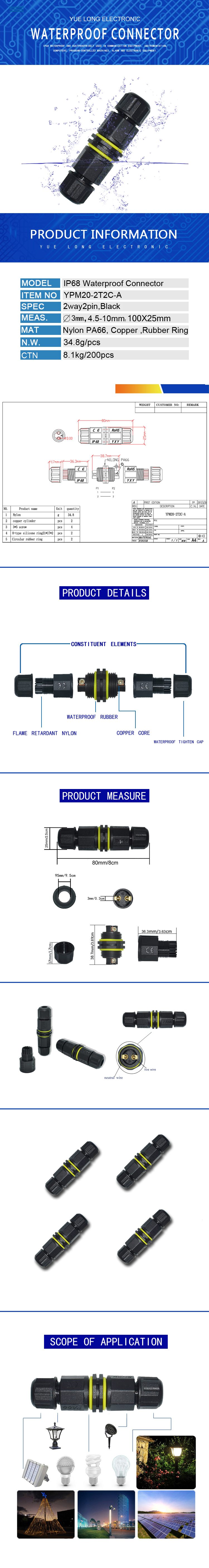

Product Photos:
Company Information

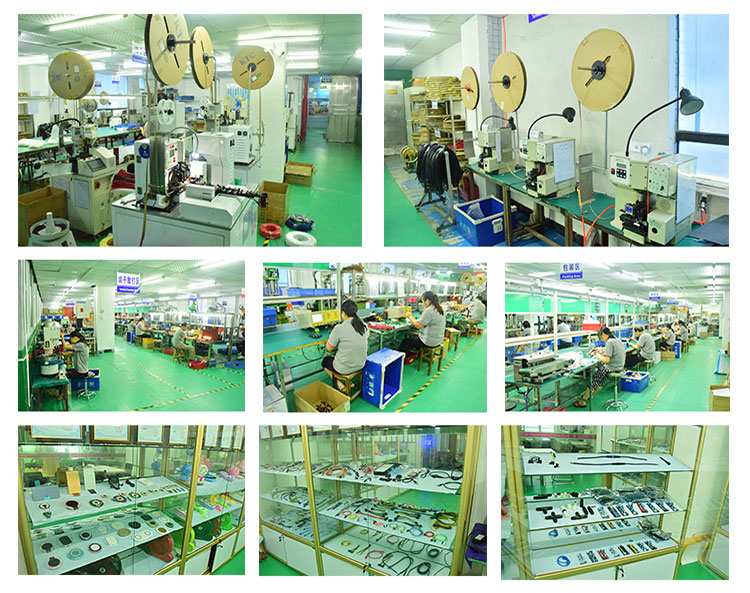

Yuelong electronics co., LTD. established in 2002, specified in R&D and manufacturing for over 18 years. We are mainly engaged in the production of Waterproof Connectors, SATA Cable, IEEE1394 Cable, USB Cable and consumer electronics industry.
At present, the production plant area is 1000M2, and has more than 100 skilled employees. Yuelong is with a concept of "Quality, Efficiency, Best Service, and Sustainable Management". The products are exported to Europe, America, Korea, Japan and Southeast Asia, On the strength of high quality, competitive price and best service, Yuelong takes huge percentage of the market all over the world.
Packaging & Shipping
FAQ
Q1: Can I have a sample order?
A: Yes, sample order and trial order are welcome to test and check quality. Mixed samples are acceptable.
Q2: Can I put my logo on the Product and Package?
A: Yes, ODM and OEM are available. We will put lable for small order, printing for mass production.
Q3: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4: How about the QC of your products?
A: We have 100% testing before packing.
Q5: What's lthe lead time?
A: Sample order will take 1-3 days, mass production will take 1-2 weeks for the order quantity more than 100K pieces.
Q6: What's the shipment?
A: We usually ship by Express DHL, UPS, FedEx or TNT, it will take 2-5 days. Air and sea transport are also acceptable.
Q7: What's the warranty?
A: 3 Years.
